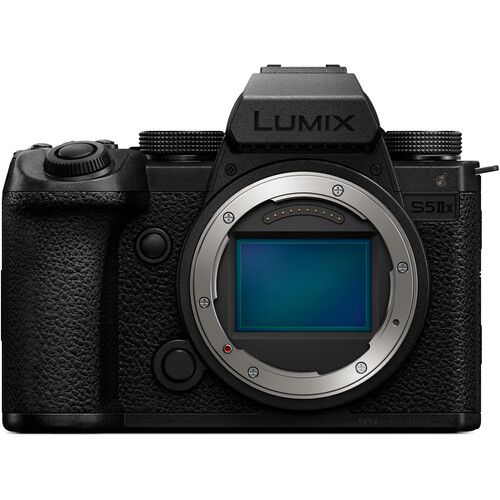

Feel the rush of cinematic creation as the Lumix S5 IIX’s 24.2MP full-frame sensor breathes life into every scene, its groundbreaking Active I.S. and Phase Hybrid AF turning shaky shots into buttery-smooth masterpieces, while Pro-Res recording and IP streaming unlock limitless storytelling potential for visionaries hungry to capture the world in its purest, most breathtaking form.
Specifications
| Core Specifications | |
|---|---|
| Lens Mount | L-Mount |
| Sensor Resolution | Actual: 25.28 MP
Effective: 24.2 MP (6000 × 4000) |
| Image Sensor | 35.6 × 23.8 mm (Full-Frame) CMOS |
| Image Stabilization | Sensor-Shift, 5-Axis |
| ISO Sensitivity Range | Photo/Video: 100-51 200 (Extended: 50-204 800) |
| Physical Specifications | |
| Color | Black |
| Material | Magnesium Alloy |
| Dimensions (W × H × D, without protrusions) | 5.29 × 4.03 × 3.55 in / 13.44 × 10.24 × 9.02 cm |
| Weight (Body Only) | 1.45 lb / 658 g |
| Weight (With Recording Media) | 1.64 lb / 744 g |
| Performance Specifications | |
| Shutter Speed | Mechanical: 1/8000-60 s
Electronic: 1/8000-60 s Bulb/Time: up to 30 min |
| Metering Range | 0-18 EV |
| Continuous Shooting | Up to 30 fps (JPEG, RAW) for up to 200 frames |
| Autofocus System | Contrast & Phase Detection (779 points), -6 to +18 EV |
| White Balance | 2500-10 000 K; Presets: AWB, Cloudy, Daylight, Flash, Incandescent, Shade, Color Temp, White Set 1-4 |
| Video Recording (Internal) | H.264/H.265/MOV/MP4/ProRes 4:2:2 & 4:2:0 8/10-bit:
• 5952 × 3968 up to 29.97 fps (200 Mb/s) • 4096 × 2160 up to 59.94 fps (150-200 Mb/s) • 1920 × 1080 up to 100 fps (20-454 Mb/s) |
| Video Recording (External) | 10-bit via USB: up to 5776 × 3056 at 29.97 fps
12-bit via HDMI: 5888 × 3312 at up to 29.97 fps |
| IP Streaming | RTP/RTSP, up to 3840 × 2160 at 59.94 p (4-25 Mb/s) |
| Connectivity & Ports | |
| Wireless | Wi-Fi 5 (802.11ac) 2.4/5 GHz; Bluetooth 5.0 |
| USB | USB-C (Data & Power) |
| HDMI Output | 1× Full-Size HDMI |
| Audio I/O | 1× 3.5 mm TRRS mic input; 1× 3.5 mm TRRS headphone output |
| Memory Card Slots | Dual SD/SDHC/SDXC (UHS-II) |
| Display & Viewfinder | |
| Rear LCD | 3″ Free-Angle Tilting Touchscreen (1 840 000 dots) |
| Viewfinder | Built-in OLED, 3 680 000 dots, 0.78× magnification, 21 mm eye-point, 100% coverage |
| Power & Battery | |
| Battery | Rechargeable Lithium-Ion 7.2 V DC, 2200 mAh (Approx. 370 shots) |
| Environmental Durability | |
| Operating Conditions | 14 to 104 °F / -10 to 40 °C; 10-80% RH |
| Additional Specifications | |
| Tripod Mount | 1/4″-20 (Bottom) |
| Shoe Mount | 1× Hot Shoe |
| Capture Media | JPEG, 14-bit RAW |
| Built-In Microphone | Stereo |
Compatibility
| Interchangeable Mount | Yes |
| Mount Type | L-Mount (φ3.5 mm) |
| Lens Compatibility |
|
| Memory Card Slot | Dual SD (Slot 1 & 2); SD/SDHC/SDXC; UHS-I/II UHS Speed Class 3; Video Speed Class 90 |
| Video Output | HDMI D (Micro); USB 3.2 Gen 1 (5 Gbit/s) |
| Audio Input | 3.5 mm mic/line; XLR with DMW-XLR2 or DMW-XLR1 |
| Remote Input | φ2.5 mm remote port |
| Wireless | Wi-Fi (2.4 GHz & 5 GHz 802.11b/g/n/ac); Bluetooth 5.0 (BLE) |
| Weather Sealing | Dust & Splash Resistant |
| Battery | Li-ion 7.2 V, 2200 mAh; USB power delivery & charging |
| Battery Grip | DMW-BGS5 (sold separately) |
| Software Compatibility | LUMIX Tether (Windows/Mac); LUMIX Sync & LUMIX Lab (iOS/Android) |
Features
- 24.2MP Full-Frame CMOS Sensor: Capture stunningly detailed images with wide dynamic range, perfect for professional stills and large-format prints.
- 6K30p 4:2:0 10-Bit Video Recording: Record cinema-quality footage with rich color depth and high resolution for flexible post-production.
- Unlimited C4K/4K60p 4:2:2 10-Bit Video: Film extended sequences without time limits, delivering broadcast-ready quality with full color sampling.
- Phase Hybrid AF System with 779 Phase-Detection Points: Achieve lightning-fast, precise autofocus and reliable subject tracking in challenging lighting or fast-action scenarios.
- 5-Axis Dual I.S. 2 & Active I.S. Stabilization: Compensate up to 6.5 stops of shake for razor-sharp handheld photos and smooth walking-shot video.
- ISO 100-51200 (Expandable to 50-204800), Up to 30 fps Shooting: Maintain image clarity in low light and capture high-speed action with minimal noise.
- High-Resolution Mode (96 MP Output): Create ultra-detailed composite images ideal for product photography, architecture, and large-scale prints.
- 3.68 m-Dot OLED LVF (0.78×) & 3.0" 1.84 m-Dot Free-Angle Touch LCD: Compose and review shots comfortably from any angle with high-contrast viewfinder and intuitive touch controls.
- USB-SSD Recording, HDMI RAW & ProRes/ALL-Intra Support: Streamline professional workflows with direct SSD backup, uncompressed RAW output, and industry-standard codecs.
- Wireless IP Streaming, USB-Tethering & Wired IP Streaming: Livestream events or monitor remotely with seamless connectivity for modern content creators.
- Dual UHS-II SD Card Slots: Maximize storage flexibility and data security by using overflow, backup, or RAW/JPEG separation options.
- Stealthy All-Black, Weather-Sealed Magnesium Alloy Body: Rugged durability ensures reliable performance in rain, dust, and demanding environments.
- Built-In Cooling Fan for Unlimited Recording: Prevent overheating during extended video shoots for uninterrupted professional operation.
- USB-C Fast File Transfer & In-Camera Battery Charging: Quickly offload media and recharge on the go without removing the battery.
- Full-Size HDMI-A, USB-C, 2.5 mm Remote & 3.5 mm Audio Jacks: Support for professional peripherals and monitoring equipment for advanced video production.
- Bluetooth 5.0 & Wi-Fi Connectivity with Lumix Sync App: Remotely control the camera, transfer images, and update firmware from your smartphone or tablet.
- Real-Time LUT & Live Cropping: Preview graded footage in-camera and reframe during recording for creative flexibility without post-crop artifacts.
- Multiple Aspect Ratios & Panoramic Formats: Choose from standard and cinematic frame sizes to match your creative vision without external editing.
- Color Shading Compensation: Correct peripheral color casts when using legacy lenses for uniform color across the frame.
- 4-Channel 48/96 kHz 24-Bit Audio Recording: Capture high-fidelity sound with XLR adapter support for professional interviews and filmmaking.
- Compatible with Lumix Tether & Optional Accessories: Expand functionality with tethered shooting, external grips, and specialized battery chargers for tailored workflows.
Applications
- Professional Hybrid Shooting: Balances 24.2 MP full-frame stills with unlimited 5.8K ProRes video for seamless photo-video workflows.
- Cinematic Filmmaking: 14+ stop V-Log/V-Gamut open-gate recording with REAL-TIME LUT for broadcast-quality color grading.
- Vlogging & Travel: Active I.S. ‘walking shots’ and reliable face/eye AF for smooth, on-the-move content creation.
- Live Streaming & Broadcasting: Integrated wireless/wired IP streaming for remote events, interviews, and corporate productions.
- Low-Light & Night Photography: Dual Native ISO delivers ultra-clean imagery in challenging lighting, ideal for astrophotography and urban nightscapes.
- Adventure & Wildlife: Compact, weather-sealed body with advanced subject detection for rugged landscapes and wildlife action.
- Sports & Documentary: Phase-hybrid AF and object tracking (people, animals, vehicles) capture fast-moving subjects with precision.
- Event & Theater: Matte-black finish for discreet operation in performances, street photography, and low-reflection scenarios.
- Wedding & Long-Form Videography: Heat-dissipation system enables unlimited recording - perfect for multi-hour ceremonies and receptions.
- Creative Projects: External SSD recording, silent modes, and high-frame-rate options support time-lapse, slow-motion, and experimental films.
Customer Highlights
- Exceptional Autofocus Performance: Customers rave about the advanced phase-detection AF system, highlighting its remarkable speed and accuracy even in challenging low-light environments.
- Phenomenal Stabilization: The new Active I.S. delivers rock-solid handheld video, allowing creators to confidently shoot without a gimbal.
- Professional Video Features: Users love the internal Apple ProRes recording and external SSD support for high-quality, uninterrupted footage.
- Outstanding Low-Light Capability: Reviewers are impressed by the camera’s dynamic range and low noise at high ISO settings, ensuring clean, vibrant images.
- Robust Build and Durability: The weather-sealed magnesium alloy chassis provides a solid, reliable feel, suitable for demanding shooting conditions.
- Ergonomic Handling: Photographers praise the comfortable grip and intuitive controls, making the transition from DSLR systems seamless.
- Long-Lasting Battery Life: The powerful battery consistently supports extended photo and video sessions without the need for frequent replacements.
- Hybrid Versatility: Content creators appreciate the camera’s balanced performance, excelling equally in still photography and professional video workflows.
- Live Streaming Ready: Built-in wired and wireless streaming capabilities allow users to broadcast directly, simplifying live production setups.
Make It Yours
Experience cinematic-quality imaging with the award-winning Panasonic Lumix S5 IIX - trusted by professional filmmakers worldwide. With only a few units left in stock, seize your chance to capture every moment in stunning 5.8K Pro-Res clarity. Add to cart now and elevate your creative journey today.
