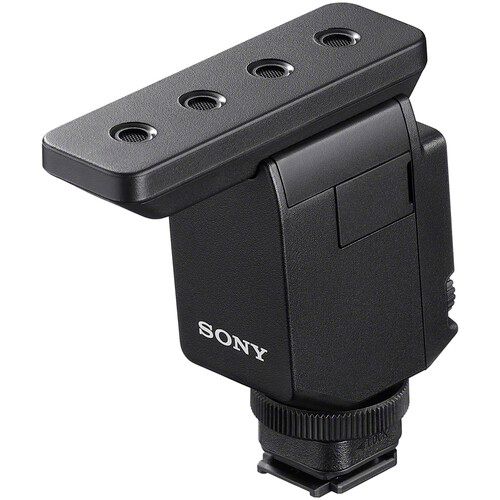

Step into every scene with crystal-clear, super-directional sound that breathes life into your storytelling - no more muffled voices or distracting background noise. The Sony ECM-B10’s compact digital design locks onto dialogue and ambient details alike, ensuring every word resonates with emotion and clarity. Feel the freedom of a lightweight, on-camera microphone that empowers your creativity, whether you're shooting intimate interviews or dynamic run-and-gun vlogs. Transform ordinary moments into immersive experiences, capturing the true pulse of your story.
Specifications
| Core Specifications | |
|---|---|
| Microphone Type | Shotgun (Stereo) |
| Element Type | Electret Condenser |
| Polar Pattern | Omnidirectional / Supercardioid / Unidirectional |
| Sound Field | Mono |
| Orientation | End Address |
| Performance Specifications | |
| Frequency Response | 40 Hz to 20 kHz |
| Dynamic Range | 105 dB or more |
| Equivalent Noise Level | 15 dB SPL or less |
| Wind Noise | 50 dB SPL or less (without windscreen)
30 dB SPL or less (with windscreen) |
| Maximum Input SPL | 120 dB SPL |
| Pad | -10 dB / -20 dB |
| High-Pass Filter | Yes |
| Gain Adjustment | 0 dB to 10 dB |
| Controls | Gain/Sensitivity, Polar Pattern, Low Cut/HPF |
| Connectivity Specifications | |
| Analog Output | No |
| Digital Output | Digital audio via Multi Interface Shoe (MI Shoe) |
| Digital Audio Specifications | |
| Digital Signal Processing & FX | Noise Reduction, Auto-Level |
| Power Specifications | |
| Power Sources | Intelligent Hot Shoe (MI Shoe) |
| Physical Specifications | |
| Color | Black |
| Dimensions (Approx.) | 81.7 × 27.4 × 79.3 mm (3 1/4 × 1 1/8 × 3 1/8 in)
Excluding windscreen and projecting parts |
| Weight (Approx.) | 72 g (2.6 oz) |
| Environmental Durability Specifications | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -20 °C to +55 °C (-4 °F to +131 °F) |
Compatibility
| Interchangeable Mount | Yes (Multi Interface Shoe / MI Shoe) |
| Digital Audio Interface | Yes (Direct digital audio transmission; requires camera MI Shoe that supports Digital Audio Interface) |
| Analog Audio Interface | Yes (Switchable via DIGITAL/ANALOG switch for analog output on non-digital cameras) |
| Wind Screen Included | Yes (Furry wind screen included for outdoor noise reduction) |
| Accessory Cap & Pouch | Yes (Connector cap and storage pouch included) |
| Adapter Requirements | None (Direct mount on Sony MI Shoe) |
| Compatible Camera Models |
|
Features
- Advanced Beamforming Technology: Delivers three high-quality microphone directivities in one unit - superdirectional, unidirectional, and omnidirectional - ensuring crystal-clear audio capture while suppressing off-axis noise.
- Three Pickup Patterns (Super/Uni/Omni): Superdirectional focus for single-subject interviews, unidirectional for multi-person conversations, and omnidirectional for immersive environmental or behind-camera sound capture.
- Compact 3.1″ Design: Ultra-portable form factor fits seamlessly on cameras, gimbals, and grips without obstructing wide-angle lenses or viewfinders, enhancing mobility for content creators.
- Digital Audio Transmission to Camera: Converts and transmits audio digitally via the MI shoe to eliminate analog hiss and signal degradation, delivering pristine in-camera recordings.
- DSP with Auto Level & Noise Suppression: Employs Sony’s digital signal processing algorithms to automatically adjust gain and reduce ambient noise, minimizing post-production editing.
- Intuitive Rear Panel Controls: Easily accessible switches for pickup patterns, noise-cut and low-cut filters, auto level, and variable pad (0/−10/−20 dB) for on-the-fly audio adjustments.
- Shock- and Vibration-Resistant Design: Advanced suspension system suppresses handling and mechanical noise, ensuring smooth, interference-free recordings even during movement.
- Cable-Free & Battery-Free Operation: Powered directly through the Sony Multi-Interface Shoe (MI) without the need for external cables or batteries, reducing setup time and mechanical noise.
- Dust- and Moisture-Resistant Construction: Built to withstand challenging outdoor environments, allowing confident shooting in rain, dust, and varied weather conditions.
- Supplied Windscreen: Includes a detachable furry windscreen that effectively reduces wind noise for clear audio capture in outdoor shoots.
- Digital/Analog Switch Compatibility: Provides a simple toggle to switch to analog mode, enabling seamless connection with a wide range of cameras that lack digital audio support.
Applications
- For Content Creators: Capture crystal-clear dialogue and ambient sound for YouTube vlogs, TikTok clips, and social media storytelling with super-directional audio (focuses on subject, reduces background noise).
- For Videographers & Filmmakers: Record broadcast-quality sound for interviews, documentaries, and corporate videos using the compact on-camera mount for run-and-gun shooting.
- For Wedding & Event Coverage: Ensure speech intelligibility during ceremonies and receptions - even in noisy environments - thanks to the shotgun microphone’s narrow pickup pattern.
- For Journalists & ENG (Electronic News Gathering): Deliver professional-grade field recordings for news reports, vox pops, and voiceovers with plug-and-play digital connectivity.
- For Podcasters & Interviewers: Achieve studio-level voice capture on location, ideal for sit-down interviews, panel discussions, and on-the-move podcast episodes.
- For Travel & Outdoor Enthusiasts: Leverage the lightweight, weather-resistant design to document adventures, nature soundscapes, and travel diaries with reliable directionality.
- For Educators & Corporate Trainers: Produce clear instructional videos, webinars, and e-learning modules with minimal setup and no mixer required.
- For Hobbyists & Amateur Filmmakers: Upgrade DSLR/mirrorless camera audio performance effortlessly - no external recorder needed - to achieve high-quality sound on a budget.
Customer Highlights
- Clear, Natural Audio: Users rave about the ECM-B10’s ability to capture crisp, dialogue-style audio, making vlogs and interviews sound professional without additional post-processing.
- Compact & Lightweight: Many highlight how the microphone’s slim, on-camera form factor adds virtually no bulk, perfect for run-and-gun shooting and travel setups.
- Plug-and-Play Convenience: Buyers appreciate the seamless digital connection to Sony cameras, noting zero latency and a clean setup that just works right out of the box.
- Built-in Windshield Effectiveness: Reviewers call out the integrated foam windscreen for noticeably reducing wind noise in outdoor shoots, eliminating the need for extra accessories.
- Adjustable Gain Control: Content creators love the easy gain dial, praising its smooth, precise control (±20 dB range) for matching different recording environments.
- Durable Build Quality: Many note the solid all-metal housing feels reassuringly rugged, handling everyday knocks and rigors of field use without issues.
- Battery-Free Operation: Customers enjoy not having to worry about batteries - powering directly from the camera’s digital interface ensures uninterrupted recording sessions.
- Versatile Mounting Options: Users commend the stable cold-shoe mount with optional 3/8″ adapter thread, making it easy to attach to cameras, rigs, or booms.
- Low Self-Noise Performance: Audiophiles appreciate the exceptionally low noise floor (16 dB SPL A-weighted), allowing for clean ambient sound capture in quiet environments.
- Enhanced Directionality: The super-directional pickup pattern impresses filmmakers for isolating on-axis sound and reducing background distractions in busy settings.
Make It Yours
Take your audio to the next level with the Sony ECM-B10 shotgun microphone - trusted by top creators and wedding filmmakers for its super-directional clarity and compact design. Stocks are limited - add the ECM-B10 to your cart now and start capturing pro-quality sound today!
