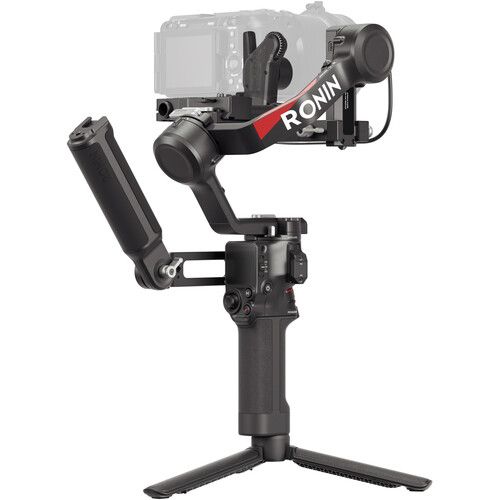

Imagine effortlessly capturing every fluid movement as your story unfolds, the 3-Axis gimbal’s Teflon-coated arms whispering along each axis while the Focus Pro Motor locks in razor-sharp focus with cinematic precision - transforming shaky handheld shots into breathtaking visual poetry. Feel the freedom of native vertical shooting and intuitive joystick control as your creativity flows seamlessly from one frame to the next, ensuring every moment is preserved in stunning clarity. Let the DJI RS 4 Combo become the extension of your vision, dissolving limitations and elevating every scene into an immersive masterpiece that resonates with emotion and power.
Specifications
| Core Specifications | |
|---|---|
| Gimbal Design | Single Handgrip (Slanted) |
| Load Capacity | 3 kg (6.6 lb) (maximum weight supported) |
| Number of Axes | 3: Pitch (Tilt), Roll, Yaw (Pan) |
| Rotation Range | (range of motion) Pan: 360° continuous; Roll: -95° to +240°; Tilt: -112° to +214° |
| Follow Speed | (speed at which gimbal follows movement) 360°/s (Pan/Tilt/Roll) |
| Physical Specifications | |
| Dimensions (Folded) | 245 × 255 × 75 mm / 9.65 × 10.04 × 2.95 in (excluding camera, grip, and Extended Grip/Tripod) |
| Dimensions (Unfolded) | 370 × 191 × 189 mm / 14.57 × 7.52 × 7.44 in (height includes grip, excludes Extended Grip/Tripod) |
| Weight (Gimbal) | 1066 g (2.35 lb) |
| Weight (Grip) | 203 g (0.45 lb) |
| Weight (Extended Grip/Tripod) | 183 g (0.4 lb) |
| Weight (Quick-Release Plates) | 98 g (0.22 lb) |
| Connectivity Specifications | |
| Bluetooth | Bluetooth 5.1 |
| Wireless Frequency | 2.400-2.4835 GHz |
| USB Ports | USB-C (Charging, Communication, Video Transmission, Focus Motor Port, RSS Camera Control, Video Transmission Port) |
| Battery Specifications | |
| Battery Model | BHX711-3000-7.2 V |
| Battery Type | LiPo 2S |
| Capacity | 3000 mAh |
| Energy | 21 Wh |
| Max Runtime | 12 hours (when stationary) |
| Charging Time | Approx. 2.5 hours (with 18 W PD charger) |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
| Performance Specifications | |
| Tested Payload | 3 kg (6.6 lb) (maximum weight supported) |
| Maximum Controlled Rotation Speed | 360°/s (Pan/Tilt/Roll) |
| Environmental Durability Specifications | |
| Operating Temperature | -20° to 45° C (-4° to 113° F) |
| Additional Specifications | |
| Accessory Ports | Ronin Series Accessories (RSA)/NATO Ports; 1/4″-20 Mounting Hole; Cold Shoe |
| Ronin App Requirements | iOS 11.0 or above; Android 8.0 or above |
| Languages Supported | English; Simplified Chinese; Traditional Chinese; German; French; Korean; Japanese; Spanish; Portuguese (Brazil); Russian; Thai |
| Guaranteed Software Updates Until | December 31, 2026 |
Compatibility
| Interchangeable Mount | Yes (Universal dovetail plate) |
| Compatible Camera Types | DSLR and Mirrorless cameras (full-frame & APS-C sensor) |
| Mounting Plate | Arca-Swiss & Manfrotto 501PL compatible |
| Operating System Compatibility | DJI Ronin App: iOS 14.0+ / Android 7.0+
DJI Assistant 2: Windows 10+ / macOS 10.15+ |
| Smartphone Compatibility | iOS & Android smartphones via adjustable clamp (55-95 mm width) |
| Accessory Compatibility | Focus Pro Motor, WLC-S Wireless Follow Focus System, Multi-Camera Control Cables (Canon/Nikon/Sony), Ronin 4D Quick Release Plate, Master Wheels |
| Compatible Camera Models | Canon
|
Features
- Lightweight 6.6 lb Payload Capacity: Effortlessly support DSLR and mirrorless setups up to 6.6 lb while reducing arm fatigue for all-day shooting.
- Integrated Focus Pro Motor: Precisely control focus and zoom directly from the gimbal for smooth, professional-level pulls without external rigs.
- Auto-Locking OLED Touchscreen: Quickly adjust settings via the bright touchscreen, then lock it to prevent accidental changes and conserve battery.
- 2nd-Gen Native Vertical Shooting: Switch between landscape and vertical formats in seconds, ideal for social media content and portrait-oriented shots.
- Automated Axis Locks: One-press auto-unlock on power-up and auto-lock on power-down streamlines setup, teardown, and transport.
- Dual-Mode Joystick & Bluetooth Switching: Instantly toggle between intuitive joystick control and Bluetooth camera triggers for versatile operation styles.
- RSA Communication Port: Expand functionality with DJI or third-party Ronin accessories - wireless image transmission, motion control, and more.
- Teflon-Coated Axes: Enjoy ultra-smooth balancing and reduced friction for faster setup and rock-steady performance.
- Fourth-Gen Stabilization Algorithm: Maintain pin-sharp footage during rapid moves, low-angle shots, and challenging environments.
- Wireless Shutter Control: Remotely trigger photo and video capture via Dual-Mode Bluetooth, eliminating camera cables on set.
- Integrated Monitoring & Control: Use Ronin Image Transmitter or smartphone app for live monitoring, exposure adjustments, and gimbal control.
- Enhanced Battery & Fast Charging: Swap modular batteries on the fly for up to 12 hours of runtime; recharge to 100% in 2.5 hours or shoot while charging.
Applications
- Solo Cinematographers: Capture smooth, professional-grade footage for documentaries, short films, and music videos with one-handed operation and efficient transitions.
- Content Creators & Vloggers: Effortlessly switch between horizontal and native vertical shooting to produce dynamic YouTube videos, Instagram Reels, and TikTok content without additional accessories.
- Wedding & Event Videography: Execute fluid pans, tracking shots, and cinematic sweeps at indoor receptions, outdoor ceremonies, and live performances for unforgettable event coverage.
- Travel & Adventure Filming: Utilize the lightweight, portable design for run-and-gun shooting in rugged environments, perfect for travel documentaries and adventure blogs.
- Corporate & Commercial Shoots: Streamline production workflows for marketing videos, product demos, interviews, and training materials with quick setup and extended battery life.
- Live Streaming & Run-and-Gun Productions: Benefit from automated axis locks and up to 12 hours of runtime to deliver uninterrupted live broadcasts and fast-paced event coverage.
- Hybrid Photo & Video Applications: Stabilize DSLR and mirrorless cameras (Canon, Sony, Panasonic, Nikon, Fujifilm) for high-resolution stills, motion timelapses, and smooth video sequences.
- Social Media Influencers: Create engaging portrait-oriented content like Stories and Reels with second-generation native vertical shooting, eliminating the need for extra adjustments.
- Documentary & Wildlife Filmmaking: Achieve precise focus pulls and zoom control using the RSA communication port and Focus Pro Motor during unpredictable, action-packed scenes.
- Real Estate & Architectural Walkthroughs: Produce stable, cinematic interior and exterior walkthroughs that highlight property details and spatial flow for real estate marketing.
Customer Highlights
- Exceptionally Smooth Footage: Reviewers consistently praise the RS 4’s 3-axis stabilization for eliminating camera shake, delivering cinema-quality smoothness even when filming on the move.
- Robust Build & Ergonomics: Users love its solid metal construction combined with an ergonomic grip - balanced perfectly for long shoots without fatigue.
- Easy to Balance & Configure: Many highlight the intuitive balancing process and quick-switching joystick modes, making setup fast and hassle-free on set or in the field.
- Long-Lasting Battery Performance: Filmmakers applaud the extended run time - enabling marathon shooting sessions without frequent battery swaps.
- Pro Focus Motor Integration: The dedicated Focus Pro Motor earns high marks for razor-sharp, smooth focus pulls when paired with compatible cine lenses.
- Native Vertical & All-In-One Combo: Photo-and-video creators appreciate the built-in vertical shooting capability and the inclusion of both 3 × Focus Motors and a carrying case in the combo kit.
- Seamless App & ActiveTrack Support: Customers value the Ronin app’s user-friendly interface and reliable ActiveTrack R functionality for dynamic subject tracking without additional gear.
Make It Yours
Elevate your video production with the award-winning DJI RS 4 Combo - trusted by thousands of professional filmmakers worldwide. Act now before stock runs out and transform your shots into stunning, cinematic masterpieces today!
